EZ Walk-in Freezers

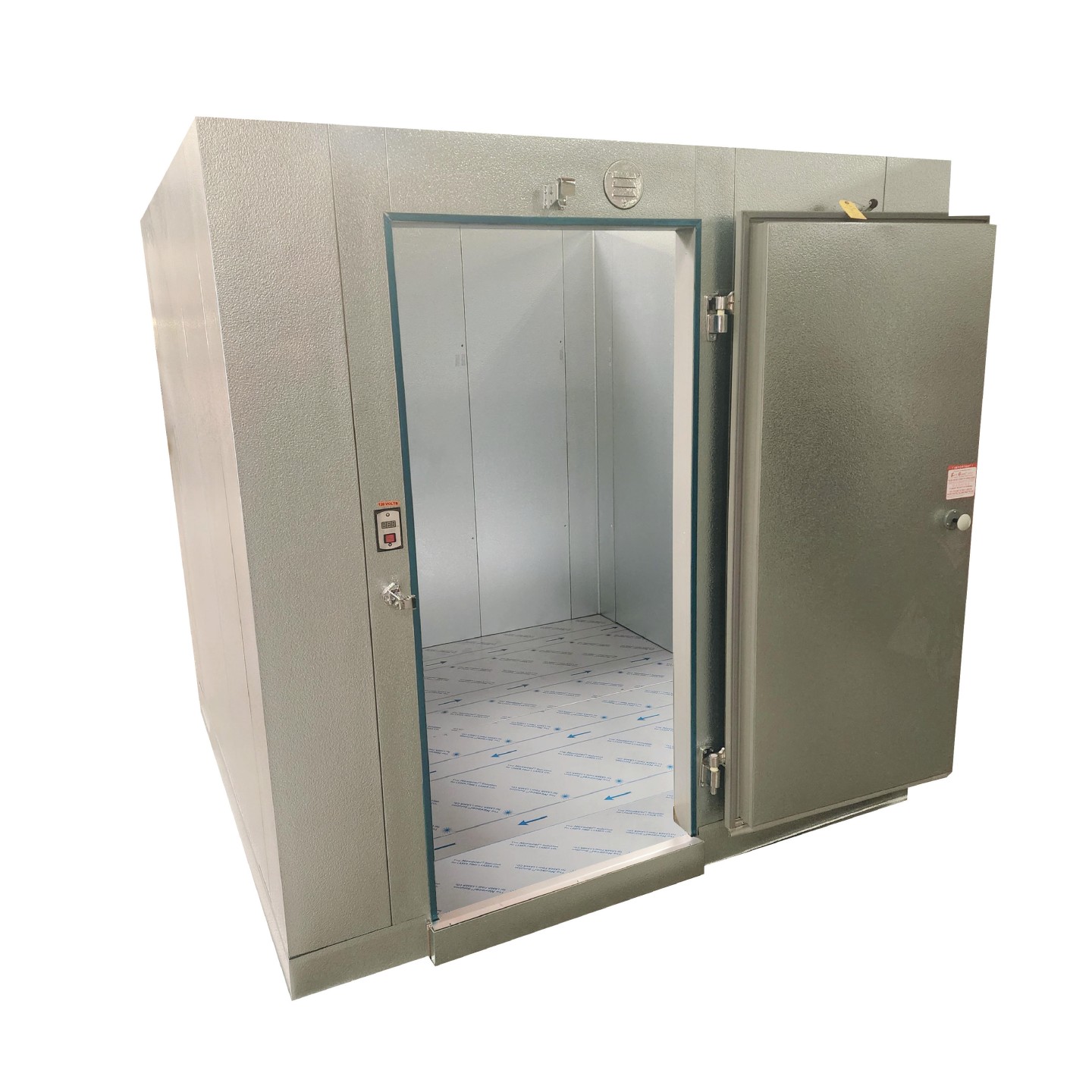

Nominal size 6’ x 6’ freezer has actual outside dimensions of 5’10” x 5’10”, door can be located as drawn.  4” thick walls and ceilings with 4-3/4” thick prefab insulated flat step-up floor with NSF cove base and 3/4" plywood reinforcement with aluminum finish.  Can be paired with Russell Refrigeration consisting of remote RFO230L condensing unit and low-profile coil RL6E066 or HP0250L48 self-contained system.  Refrigeration is 220v 1ph or 3ph, charged with R448 refrigerant.

Refrigeration Spec Sheet

Size6 ft x 8 ft x 8 ft Freezer8 ft x 10 ft x 8 ft Freezer8 ft x 12 ft x 8 ft Freezer6 ft x 7 ft x 8 ft Freezer8 ft x 8 ft x 8 ft Freezer10 ft x 10 ft x 8 ft Freezer6 ft x 6 ft x 8 ft Freezer6 ft x 9 ft x 8 ft Freezer6 ft x 10 ft x 8 ft Freezer6 ft x 11 ft x 8 ft Freezer6 ft x 12 ft x 8 ft Freezer6 ft x 13 ft x 8 ft Freezer7 ft x 7 ft x 8 ft Freezer7 ft x 8 ft x 8 ft Freezer7 ft x 9 ft x 8 ft Freezer7 ft x 10 ft x 8 ft Freezer7 ft x 11 ft x 8 ft Freezer7 ft x 12 ft x 8 ft Freezer7 ft x 13 ft x 8 ft Freezer8 ft x 9 ft x 8 ft Freezer8 ft x 13 ft x 8 ft Freezer8 ft x 11 ft x 8 ft Freezer9 ft x 9 ft x 8 ft Freezer9 ft x 10 ft x 8 ft Freezer9 ft x 11 ft x 8 ft Freezer9 ft x 12 ft x 8 ft Freezer9 ft x 13 ft x 8 ft Freezer6 ft x 14 ft x 8 ft Freezer7 ft x 14 ft x 8 ft Freezer 8 ft x 14 ft x 8 ft Freezer9 ft x 14 ft x 8 ft Freezer10 ft x 11 ft x 8 ft Freezer10 ft x 12 ft x 8 ft Freezer10 ft x 13 ft x 8 ft Freezer10 ft x 14 ft x 8 ft Freezer11 ft x 11 ft x 8 ft Freezer11 ft x 12 ft x 8 ft Freezer11 ft x 13 ft x 8 ft Freezer11 ft x 14 ft x 8 ft Freezer12 ft x 12 ft x 8 ft Freezer12 ft x 13 ft x 8 ft Freezer12 ft x 14 ft x 8 ft Freezer13 ft x 13 ft x 8 ft Freezer13 ft x 14 ft x 8 ft Freezer14 ft x 14 ft x 8 ft FreezerGET AN EZ QUOTE
