EZ Walk-In Coolers
Nominal size 8’ x 12’ cooler has actual outside dimensions of 7’9” x 11’9”, door can be located as drawn or where you see #3 or #4 panels. 3-1/2” thick walls and ceilings, no insulated floor. Can be paired with Russell Refrigeration consisting of remote RFO100 condensing unit and low-profile coil RL6A073 or HP0100M48 self-contained system. Refrigeration is 220v 1ph or 3ph, charged with R448 refrigerant.
SizeGET AN EZ QUOTE- description
- additional information

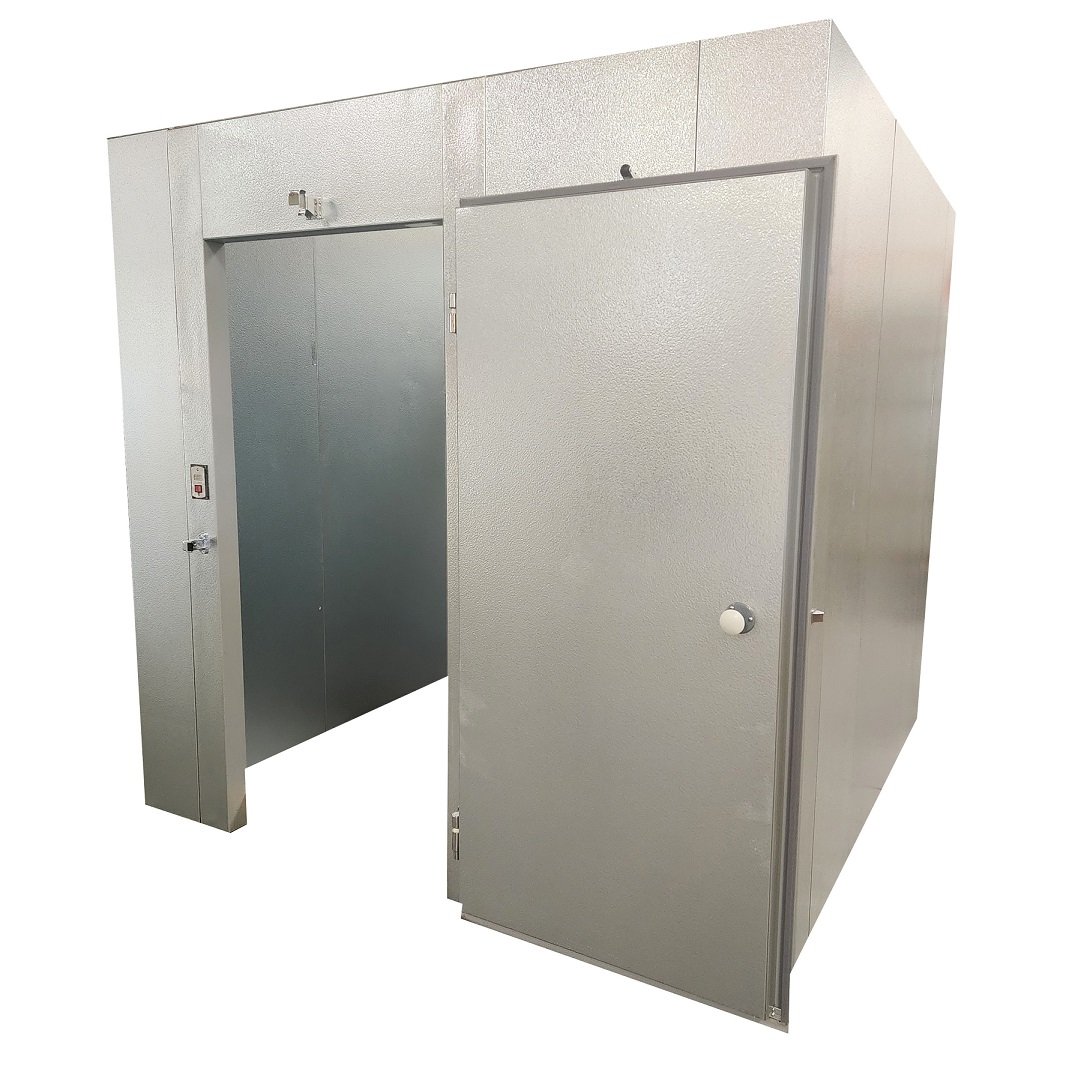

8 ft x 12 ft x 8 ft Walk-in Cooler. This is a quick ship box and available for immediate purchase. Contact us for details.
Construction:
- NSF
- Tongue & Groove
- High Density Foam Rails
- Lag Down Ceiling
- 3 ½” Wall Panels
- 4” Ceiling Panels
Floor:
- No Floor
Panel Finish:
- Interior: 26GA. Stucco Embossed Galvalume
- Exterior: 26GA. Stucco Embossed Galvalume
Door:
- (1) 36” x 78” Standard Overlap MTD, Cam-Lift Cooler Door
Door Accessories:
- (1) Latch w/ Inside Safety Release
- (1) Cam-Rise Spring Hinge
- (1) Cam-Rise Hinge
- (1) Hydraulic Door Closer
- (1) Kason Light Switch w/ Digital Thermometer (Rated 15A, 120V AC) #1967-3
Additional Accessories (Included):
Following items are shipped loose and required field installation:
- (1) Light Fixture (shipped loose)
- (22) Lag Bolts for Ceiling (Space @ 23″ O.C.) 6″ Interior/Exterior NSF Cove Base
- Silicone/Caulking & Screw
- Ceiling Cap & Trim
Refrigeration:
- (1) 1.25 HP Outdoor Remote Condensing Unit R-448A (208-230/1Ø /60Hz)
- (1) Air Defrost Coil / Components Included (115/1Ø/60Hz)
*Please contact us for a shipping quote or to schedule a pickup at our facility.*
*All orders are final, no returns.*
