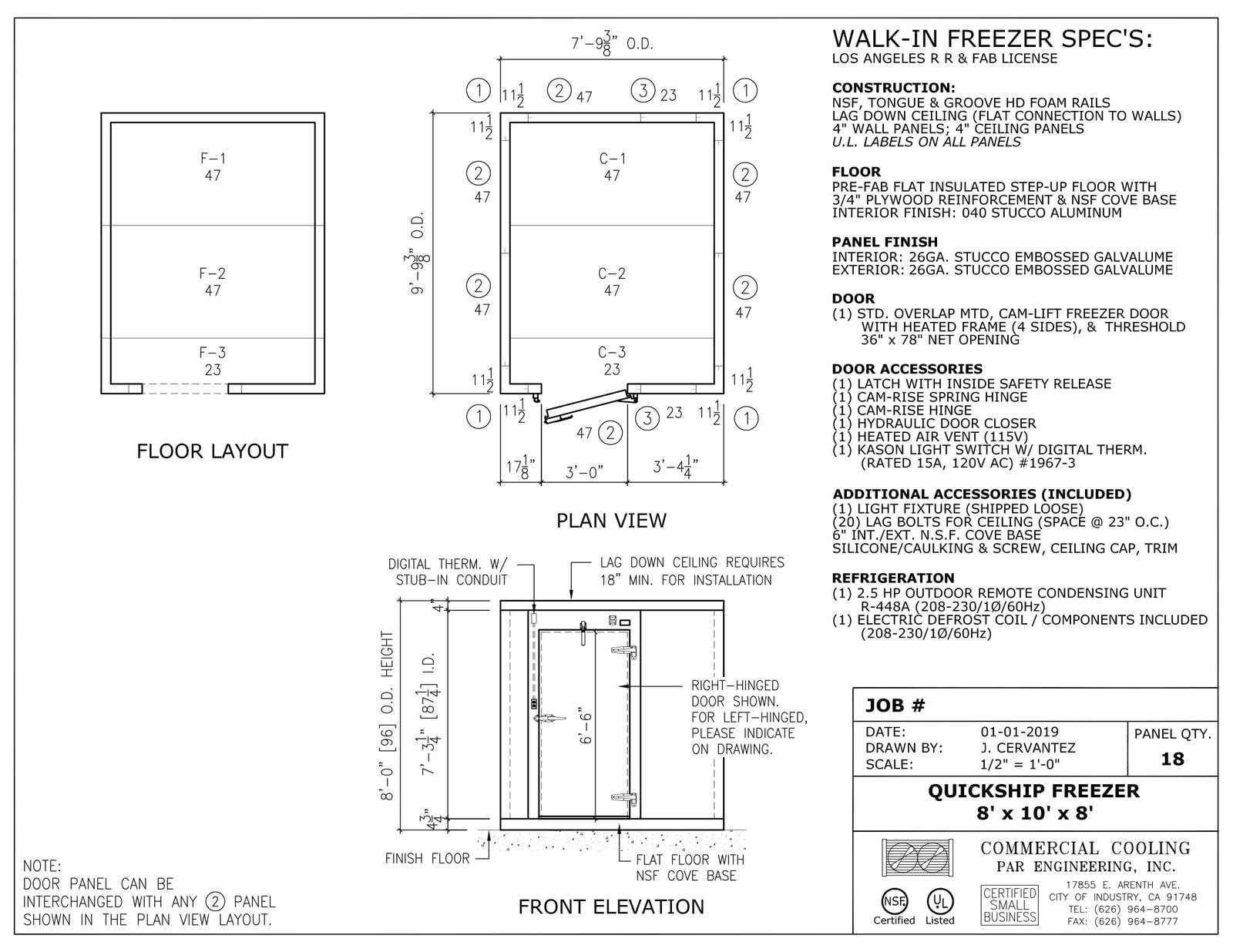

8 ft x 10 ft x 8 ft Walk-in Freezer. This is a quick ship box and available for immediate purchase. Contact us for details.

Construction:

• NSF
• Tongue & Groove
• High Density Foam Rails
• Lag Down Ceiling
• 4” Wall Panels
• 4” Ceiling Panels

Floor:

• Pre-Fab Flat Insulated Step-Up Floor with ¾” Plywood Reinforcement & NSF Cove Base Interior Finish: 040 Stucco Aluminum

Interior Finish:

• 26GA. Stucco Embossed Galvalume

Exterior Finish:

• 26GA. Stucco Embossed Galvalume

Door:

• 36” x 78” Standard Overlap MTD, Cam-Lift Freezer Door w/ Heated Frame (4 Sides), & Threshold

Door Accessories:

• (1) Latch w/ Inside Safety Release
• (1) Cam-Rise Spring Hinge
• (1) Cam-Rise Hinge
• (1) Hydraulic Door Closer
• (1) Heated Air Vent (115V)
• (1) Kason Light Switch w/ Digital Thermometer (Rated 15A, 120V AC) #1967-3

Additional Accessories (Included):
Following items are shipped loose and required field installation:

• (1) Light Fixture (shipped loose)
• (20) Lag Bolts for Ceiling (Space @ 23″ O.C.) 6″ Interior/Exterior NSF Cove Base
• Silicone/Caulking & Screw
• Ceiling Cap & Trim

Refrigeration:

• (1) 2.5 HP Outdoor Remote Condensing Unit R-448A (208-230/1Ø/60Hz)
• (1) Electric Defrost Coil / Components Included (208-230/1Ø/60Hz)

*Please contact us for a shipping quote or to schedule a pickup at our facility.*
*All orders are final, no returns.*

Weight	151 lbs
